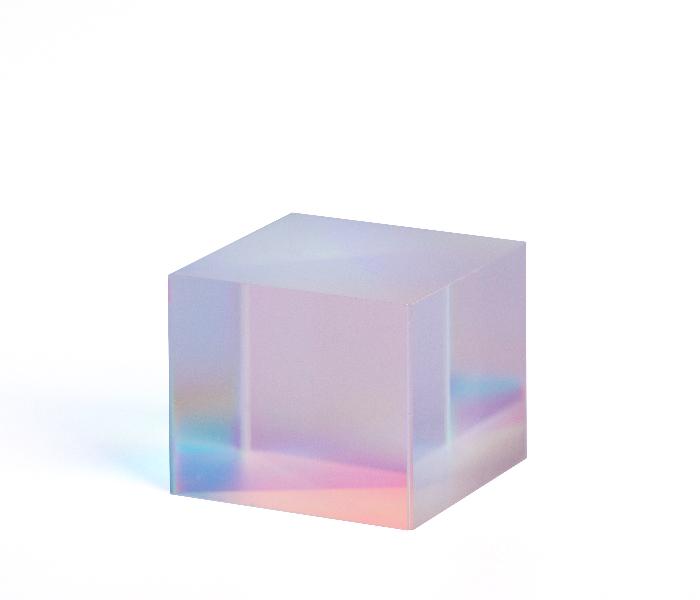

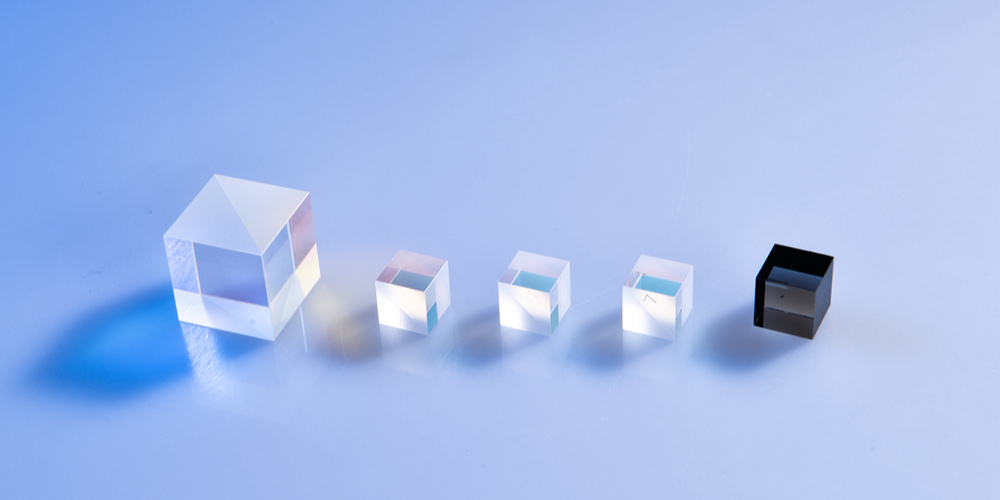

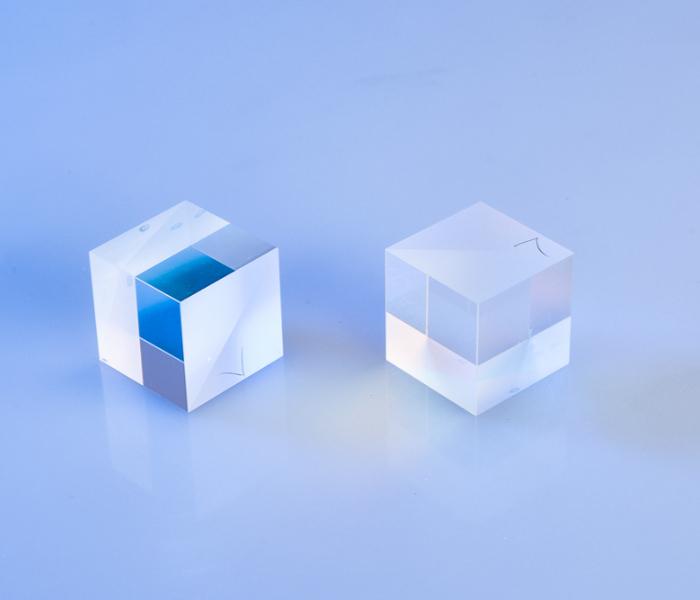

日本語High-tolerance Polarization or Non-polarization Beam Splitter Prisms
A new design of polarization prism system has many advantages, including low loss, high isolation, compact construction and convenient adjustment.
品牌:
Hitronics
A new design of polarization prism system has many advantages, including low loss, high isolation, compact construction and convenient adjustment.
品牌:
Hitronics
| Parameters | Commercial Quality | High Precision Quality |  |
| Material: | N-BK7 or Fused Quartz | ||
| Size: | 1*1mm~25.4*25.4mm；dia3~25.4mm | ||
| Tolerance | ±0.1mm | ±0.05mm | |
| Parallelism | ＜20 seconds | ＜5 seconds | |
| Effective Apeature | ＞85% | ||
| Surface Quality | MIL 60-40 | MIL 10-5 | |
| Irregularity | λ/4@ 632.8nm |
λ/10@ 632.8nm |
|
| T/R T=(Ts+Tp)/2; R=(Rs+Rp)/2 | 50/50±5% | 50/50±2% | |
| Chamfer | Protective Chamfer or Cutomized | ||
| Coating | As designed | ||
Non-Polarized Beam Splitter Prisms (also called depolarizing beam splitters) are used to maintain the ration of the original horizontal polarization and vertical polarization in the incident light after the beam splitting.The optical characteristics separation of P light and S light is less than 5%, the dispersion is low, and the color neutrality is good. The wavelengths cover 400-1600nm and are usually used in interferometers and various imaging instruments. Non-polarization depolarizing beamsplitters are utilized for randomly polarized light and are designed for applications where polarization effects are to be minimized. Hitronics produces both narrowband or broadband NPBS.
With industry-leading reliability, high transmission and sensitivity, steep edges, and exceptional blocking ranges and longer life, and lower cost.
Flat Optics Flow Through Quartz Cuvettes are widely used in Hemocytometer, Flow Cytometry, Spectroscopy, Urine Analyzer and Cell Counter and other Life Science Instruments. Hitronics is the top one manufacture providing super stability, maximum precision and reliability cuvettes for the global customers for your individual applications.
High Precision Optical Reflecting Deflecting Displacement Rotation and Dispersion Prisms are choosen by Microscopes, Optical Instruments, Binoculars, Telescopes, Periscopes, Surveyring equipements and many sophisticated Scientific Instruments including Interferometers, Spectrophotometers and Fluorimeters.
Good coating durability increasing the life time when cycling use High power options High refectivity is more than 99% Customized are available
Ge, ZnSe, Si, CaF2, Chalcogenide glass, Cu, Al materials optional Short, Mid and Long Waves available Diameter from 5mm~250mm Customized coating film
Hitronics is the No.1 supplier of Cylindrical lens in the global market with capacity more than 3 millions per month. The series of products are full in styles: FAC (fast-axis collimator lens) SAC (slow-axis collimator lens) Cylindrical Lenses Spherical and Cylindrical Lenses Acylindrical Lenses
